| Model: | MH-13 |
| Type: |
13.5-inch two-way rear-firing full-range speaker |
| Unit configuration: | LF: 13.5" woofer, HF: 1.75" compression driver |
| Frequency response: | 45Hz-20kHz±3dB |
| Rated power: | 600W |
| Continuous power: | 1200W |
| Peak power: | 2400W |
| Sensitivity: | 101dB |
| Maximum sound pressure level: | 127dB |
| Standard impedance: | 8 Ω |
| Radiation angle: | 80°（H）x 50°（V） |
| Wiring method: | 2 x Neutrik NL 4 |
| Hanging method: | M8 threaded hole |

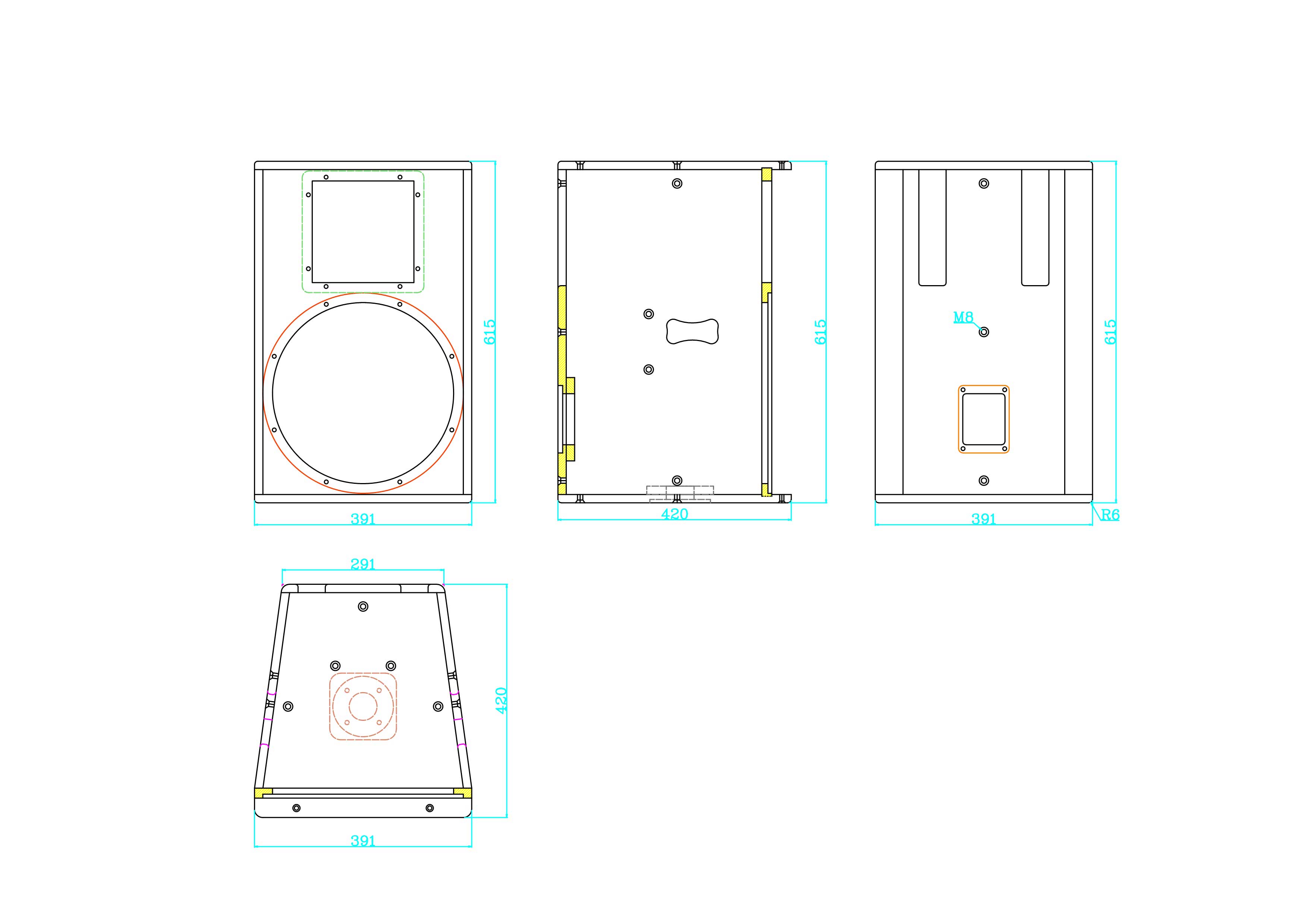

| Size (mm): | 391×420×615(WxDxH) |
| Net weight (kg): | 22.2 |
