LA-215
Dual 15-inch three-way line array speakers

LA-215 is meticulously designed specifically for venues such as theaters, sports facilities, and outdoor performances. Housed within a high-density plywood enclosure, it comprises two 15-inch high-configuration neodymium low-frequency drivers, three 3-inch neodymium high-frequency drivers mounted on a high-frequency horn with a coverage angle of 120°×8°, and four 8-inch neodymium mid-range drivers. This configuration offers an exceptionally dynamic range, significantly reduces the weight of the enclosure, and delivers an exceptionally high sound pressure/volume ratio.
Application scope: Main sound reinforcement for medium to large outdoor performances, sports venues, and bars.


Model LA-215
Frequency response ① 45Hz～18kHz(±3dB)      40Hz～20kHz(-10dB)
Horizontal directionality (-6db) 120° × 8°
sound pressure level 145 dB,  151dB Peak
speaker unit 2 x 15 "neodymium iron boron magnetic circuit paper cone unit (3" voice coil)
4 x 8 "neodymium iron boron magnetic circuit paper cone unit (2" voice coil)
3 x 3 "neodymium iron boron magnetic circuit compression treble (3" voice coil)“
Rated impedance LF1：8 Ω;  LF2: 8 Ω;  MF: 8 Ω;  HF: 8 Ω
Rated Power: LF1:600W;LF2:600W;MF:480W: HF:300W
Continuous power: LF1:1200W; LF2:1200W; MF:960W; HF:600W
Peak Power: LF1:2400W;LF2:2400W;MF:1920W; HF:1200W

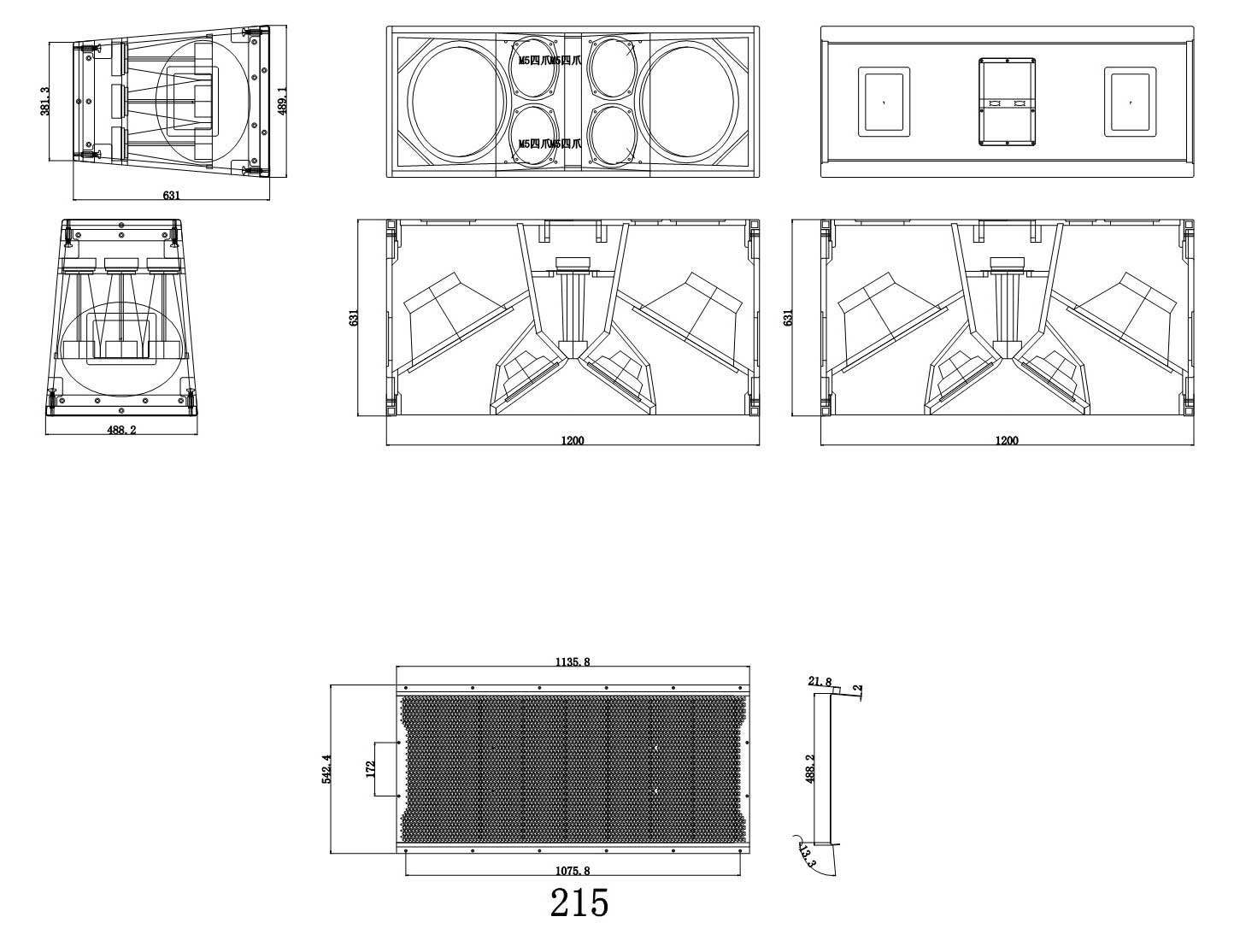

Box size(W×H×D) 1200mm×490mm×630mm
Weight: 83kg
Connector: 2 x 8-pin NL8MPR speaker stand * 2
Connection method: LF1:1+1-; LF2:2+2-; MF:3+3-; HF:4+4-
Hanging method: Pre adjustable angle 4-point suspension
Angle: 0, 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5 adjustable
Material Science: 18mm and 24mm birch multi-layer plywood
Surface Treatment Black anti-collision waterproof polyurea environmentally friendly paint
Grid: Black epoxy porous steel mesh and transparent speaker mesh cotton

×
