| type | 10-inch two-division front-guided full-frequency speaker |
| Unit configuration | LF: 10 "bass unit, HF: 1.4" compression driver |
| frequency response | 60Hz-20kHz±3dB |
| Rated Power | 300W |
| Program Power: | 600W |
| Peak Power: | 1200W |
| sensitivity | 96dB |
| Maximum sound pressure level | 119dB |
| Standard impedance | 8 Ω |
| Radiation angle | 90°(H) × 40°(V) |
| Wiring mode | 2 x Neutrik NL 4 |
| Hanging method | M8 threaded hole |

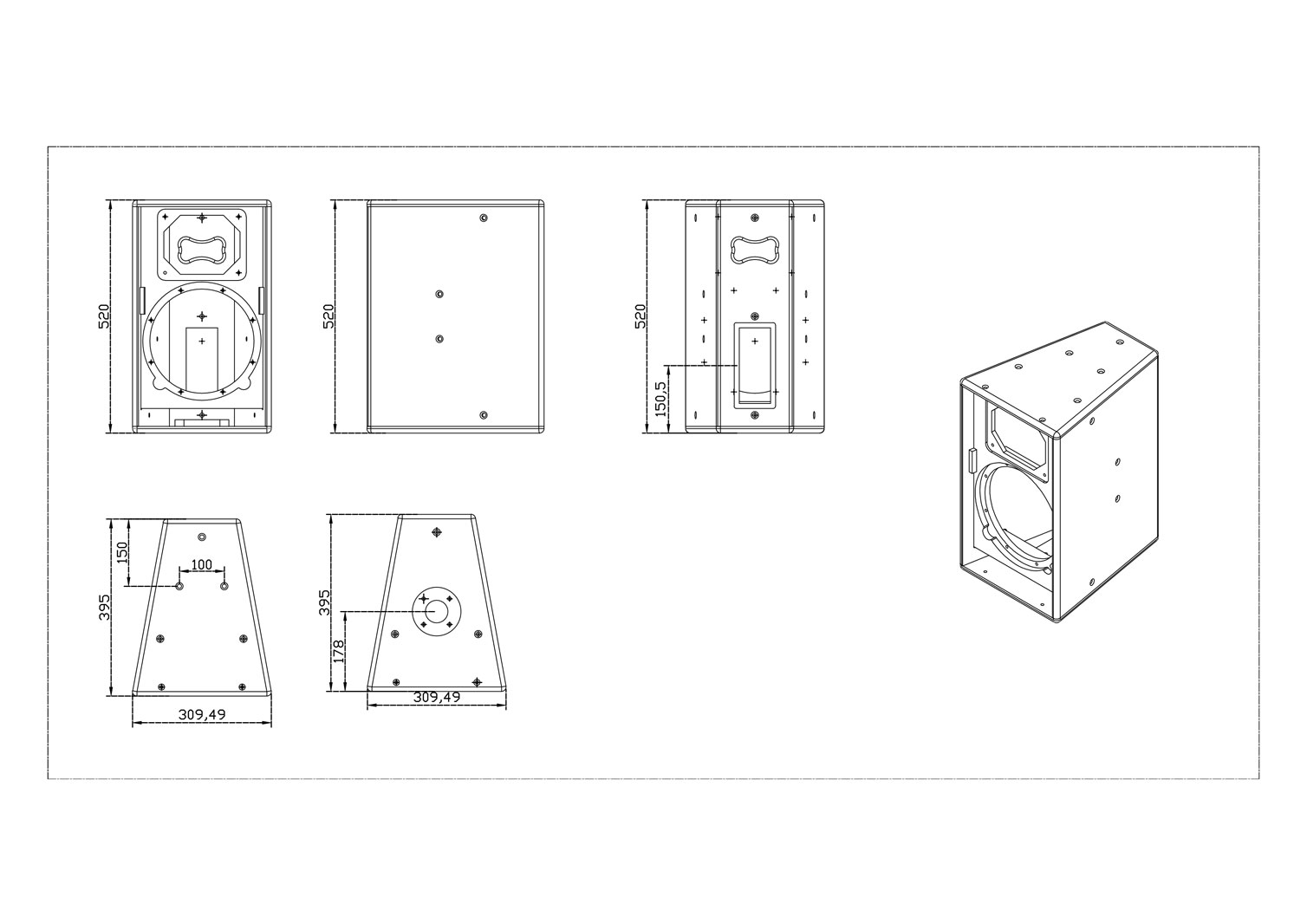

| Dimension (mm) | three hundred and ten × three hundred and ninety-five × 520(WxDxH) |
| Net weight (kg) | 16 |
