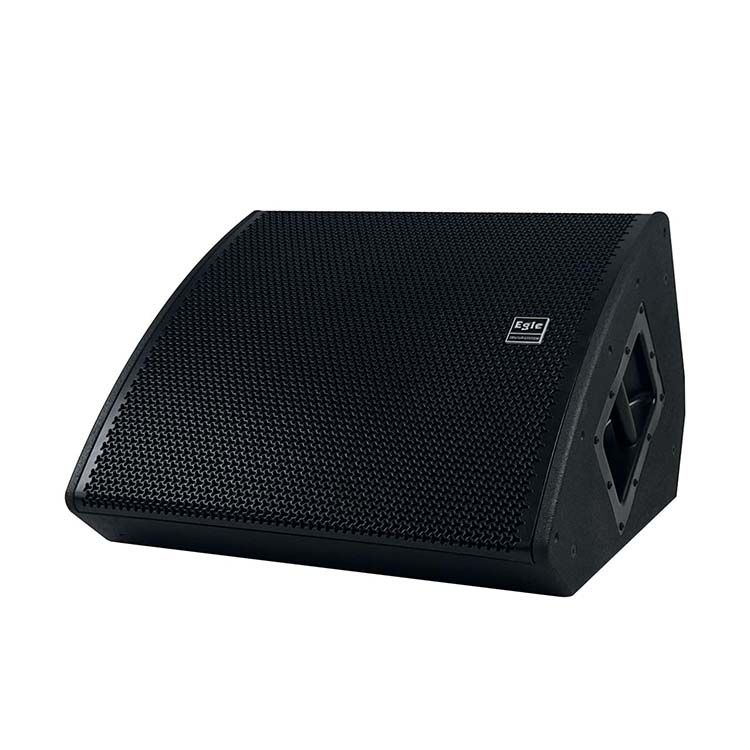

E-15M

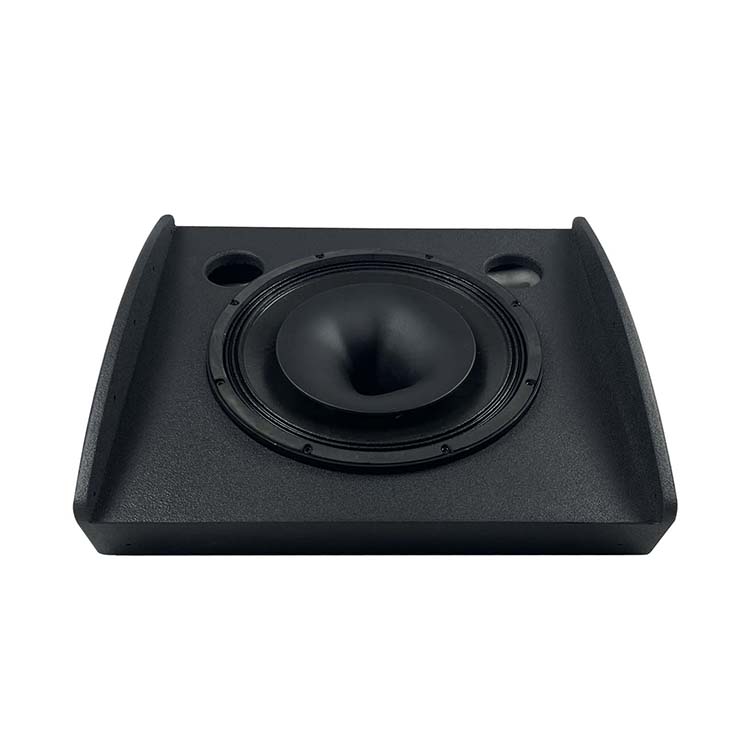

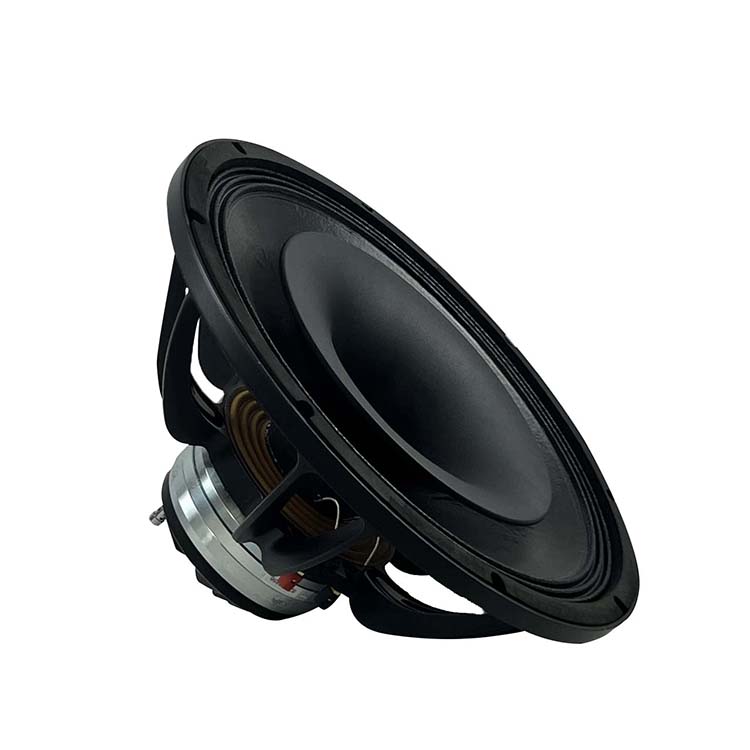

E-15m is a two-part frequency return listening speaker. The high-frequency drive unit is a precision high-frequency compression driver with wide and smooth frequency response. The low-frequency speaker unit is a 15 inch paper basin high-performance low-frequency unit.
Scope of application: banquet hall, multi-function hall, bar listening back.


Type: 15 inch professional coaxial listening back speaker

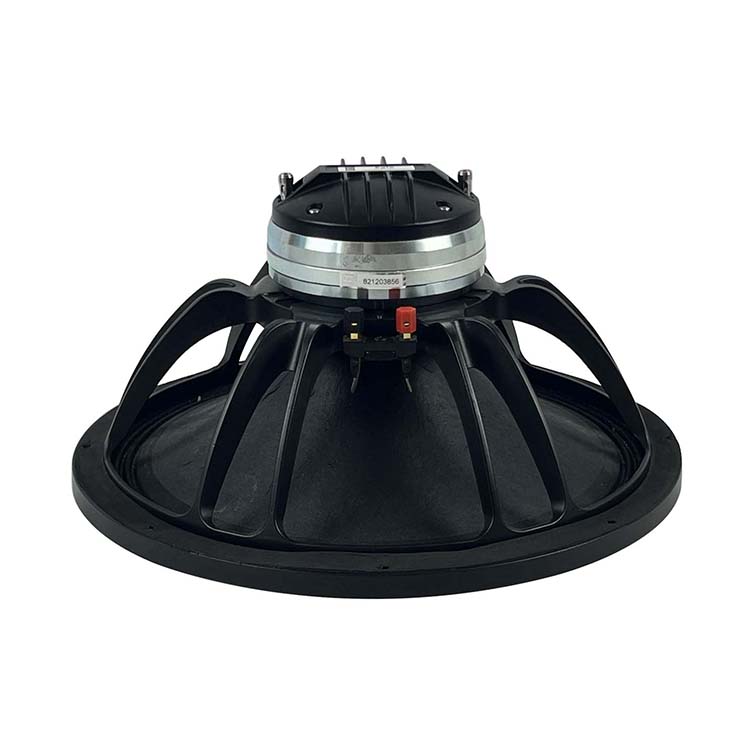

Unit configuration LF: 15 "woofer, HF: 3" compression drive
Frequency response: 55Hz-20KHz±3dB
Rated Power 600W
Program Power: 1200W
Peak Power: 2400W
Sensitivity ( 1W/1M ): 105dB
Maximum SPL: 138dB
Impedance(ohm): 8 Ω
Dispersion angle: 60°（H）x 40°（V）
Wiring mode 2 x Neutrik NL 4

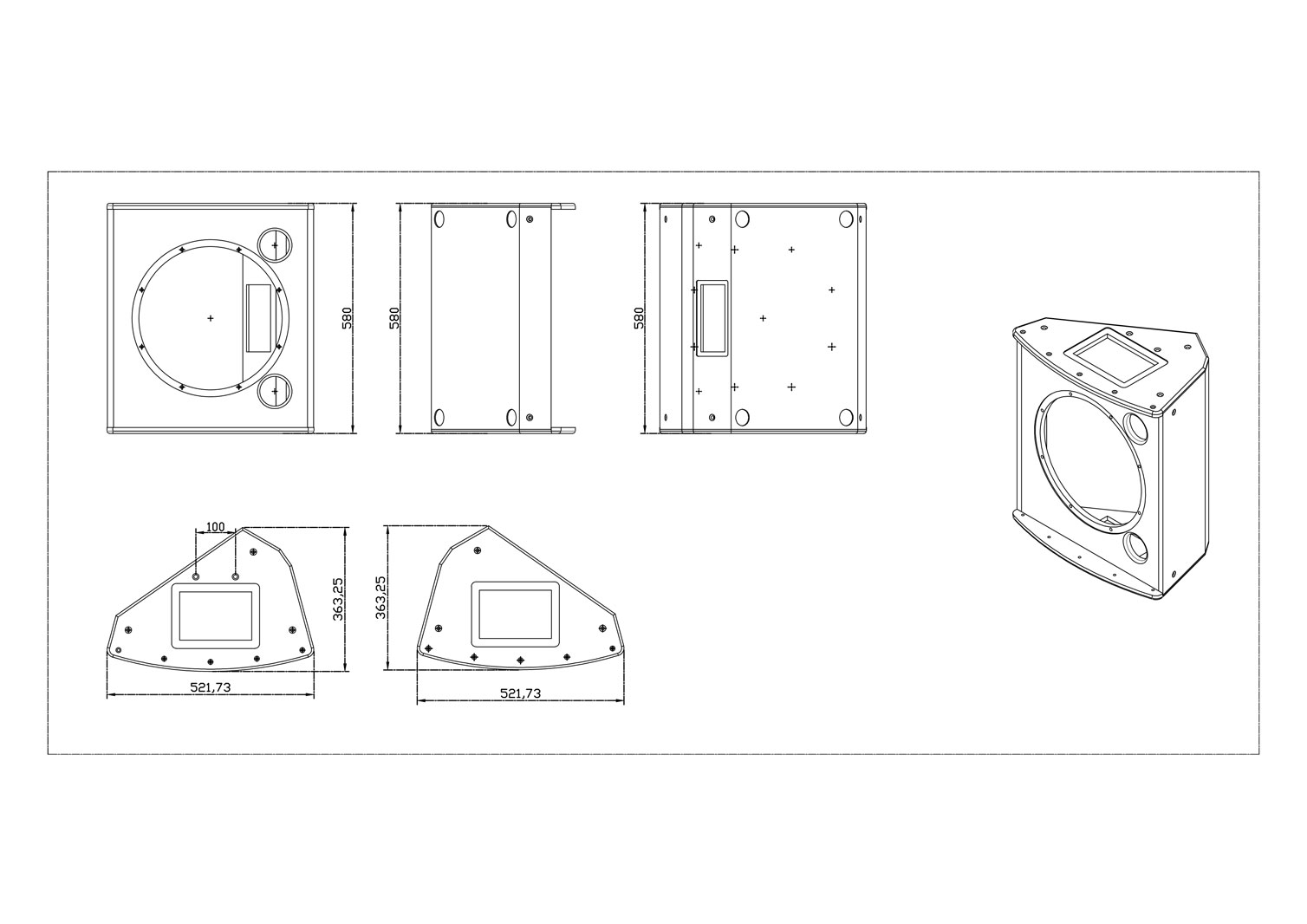

Dimensions(W×D×H): 580×522×364mm
N.W.: 21kg



×
