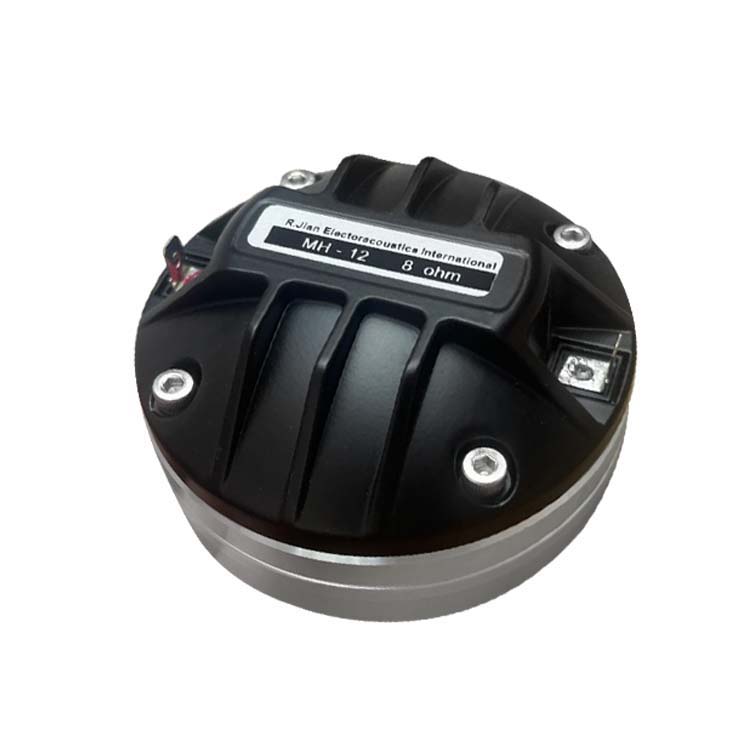

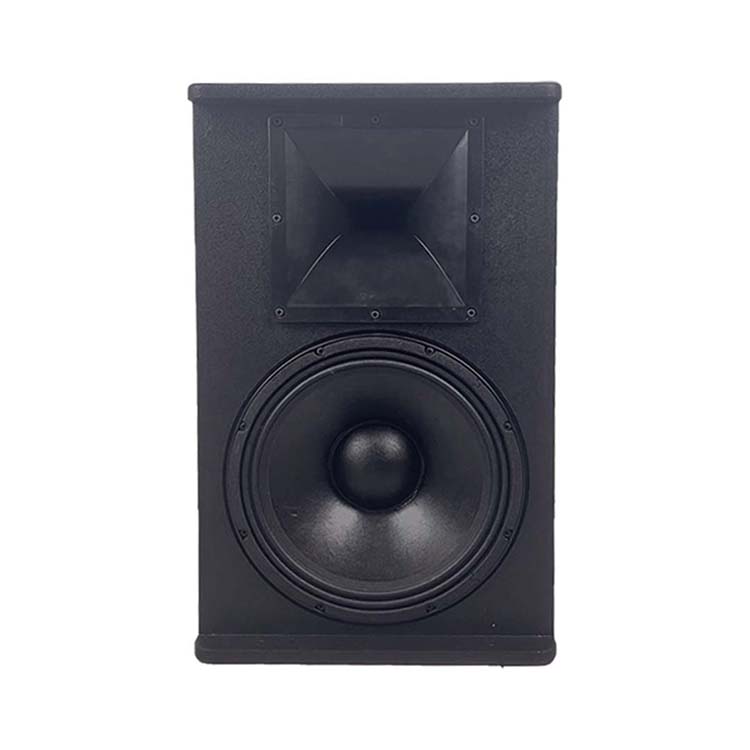

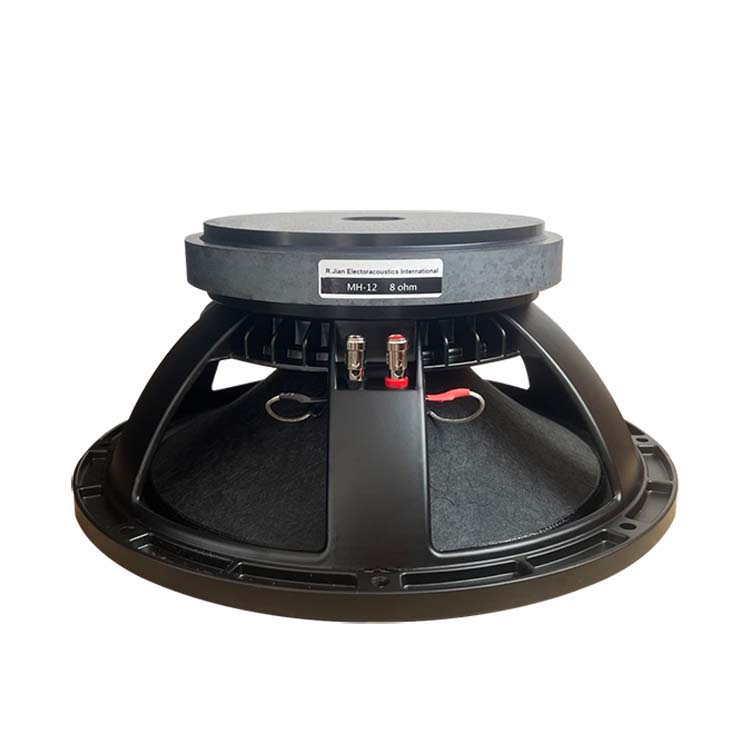

| Unit configuration | LF:12" bass unit, HF:1.75" compression driver |
| Frequency response | 40Hz-20kHz±3dB |
| Rated Power | 450W |
| Program Power: | 900W |
| Peak Power: | 1800W |
| Sensitivity | 99dB |
| Maximum pressure level | 121dB |
| Standard impedance | 8 Ω |
| Radiation Angle | 90°（H）x 40°（V） |

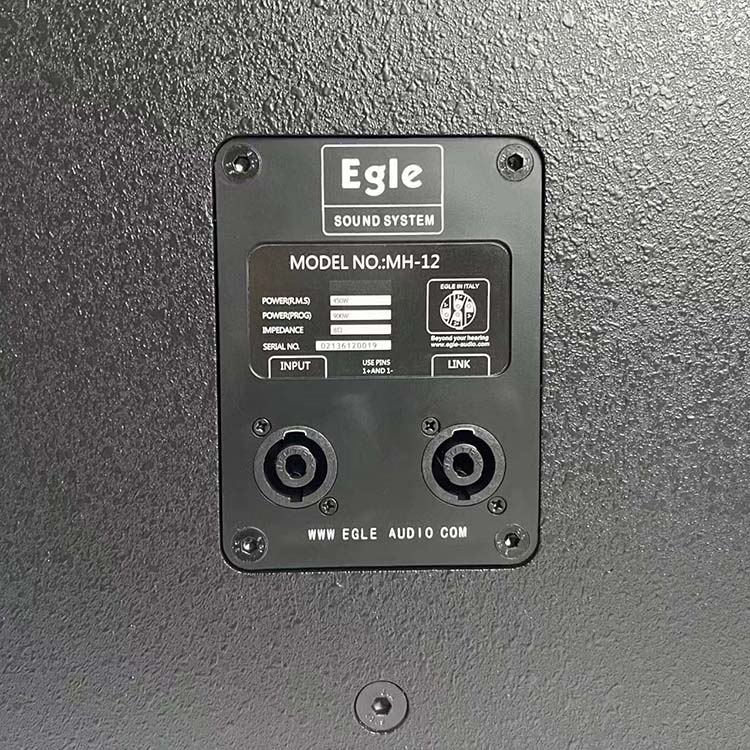

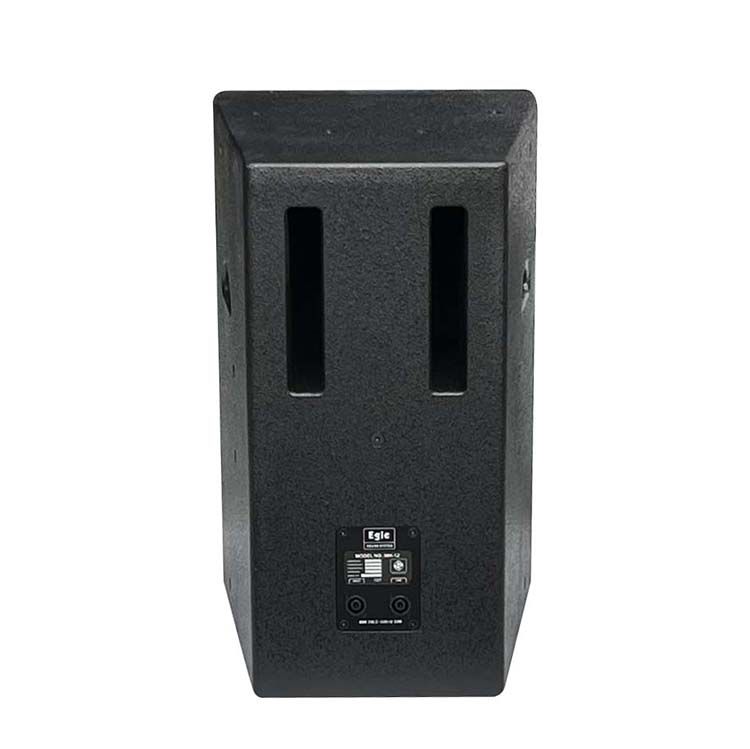

| Connection mode | 2 x Neutrik NL 4 |

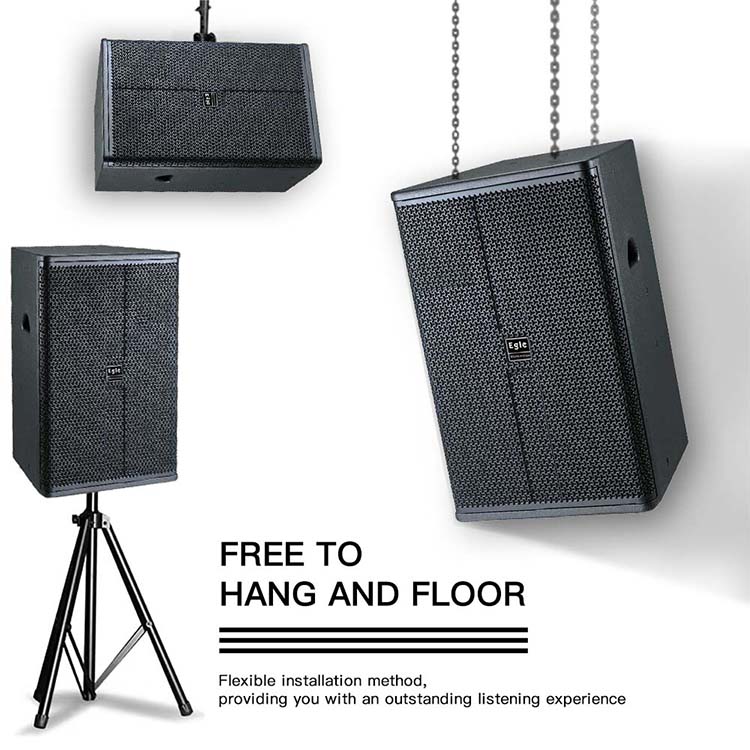

| Hanging mode | M8 threaded hole |

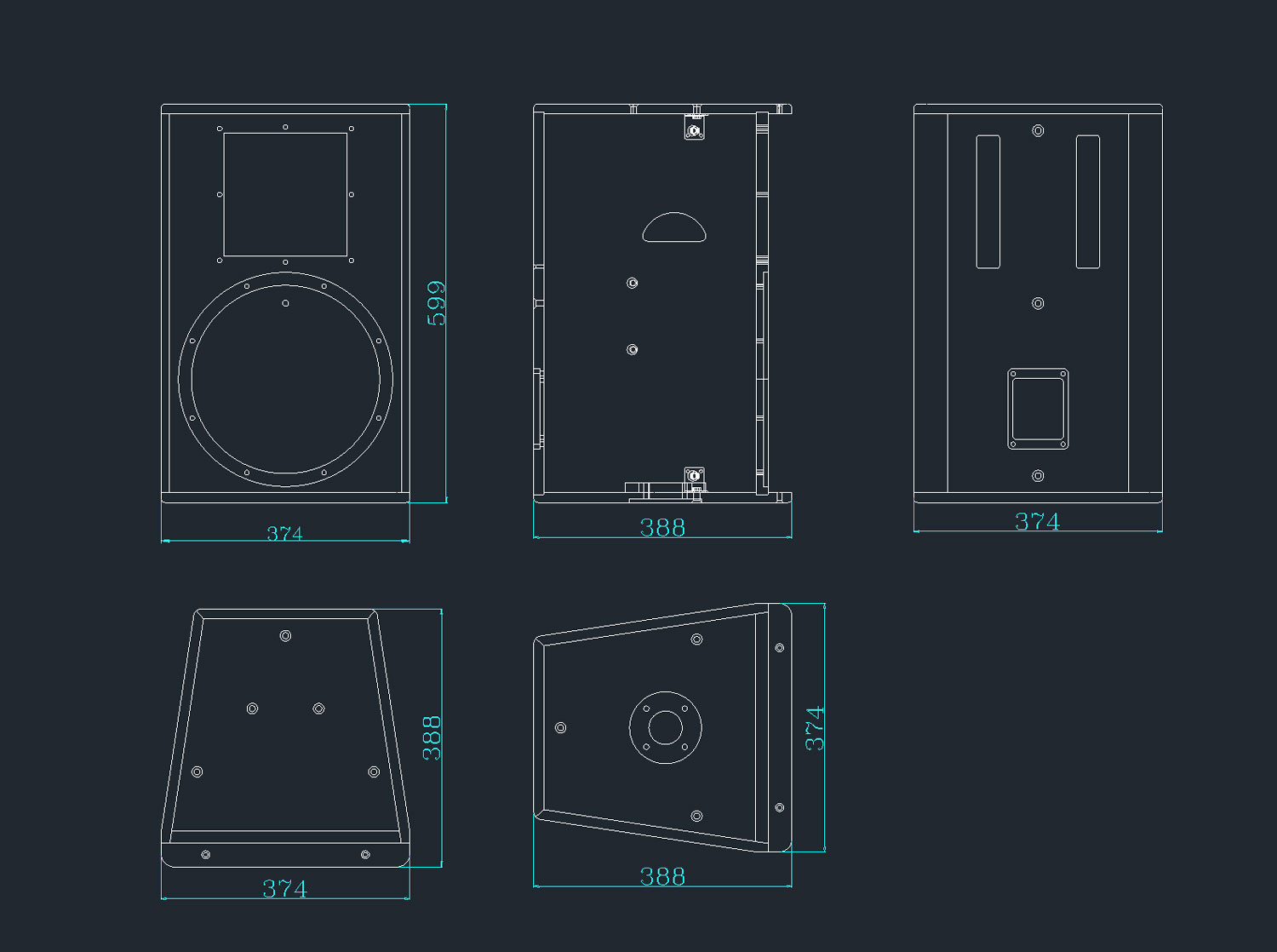

| Dimensions(W×D×H): | 374×388×599mm |
| Net weight (kg) | 21KG |
