LA-212
Three unit two-way linear array full frequency speaker

LA-212 is meticulously designed for venues such as theaters, sports facilities, and outdoor performances. Within its high-density plywood enclosure, it comprises two 12-inch high-configuration neodymium low-frequency drivers and a 75mm neodymium high-frequency driver mounted on a high-frequency horn with a coverage angle of 80° horizontal × 10° vertical. This configuration forms a combination with a substantial dynamic headroom, significantly reduces the weight of the enclosure, and delivers an exceptionally high sound pressure/volume ratio.
Application scope: Main sound reinforcement for medium to large outdoor performances, sports venues, and bars.


Model: LA-212
type Three-unit two-way loudspeaker
rated power HF:110W LF:1000W
Continuous power HF:220W LF:2000W
Peak Power HF:440W LF:4000W
Nominal impedance 8Ω(LF) + 8Ω(HF)
tweeter 1×3 inches (75mm diaphragm) neodymium magnetic compression driver
bass driver 2×12-inch (75mm voice coil) ferrite mid-bass driver
sensitivity LF:102dB,HF:110dB
frequency response 60Hz~20KHz
Diffusion angle 80° (horizontal) X 10° (vertical)
Maximum Sound Pressure Level 133dB
crossover frequency 1.2KHz
Box material Multi-layer plywood
Spraying color Black polyurea sand
protective face shield Black perforated steel + sound-permeable fabric
wiring method LF:1+1-;HF:2+2-

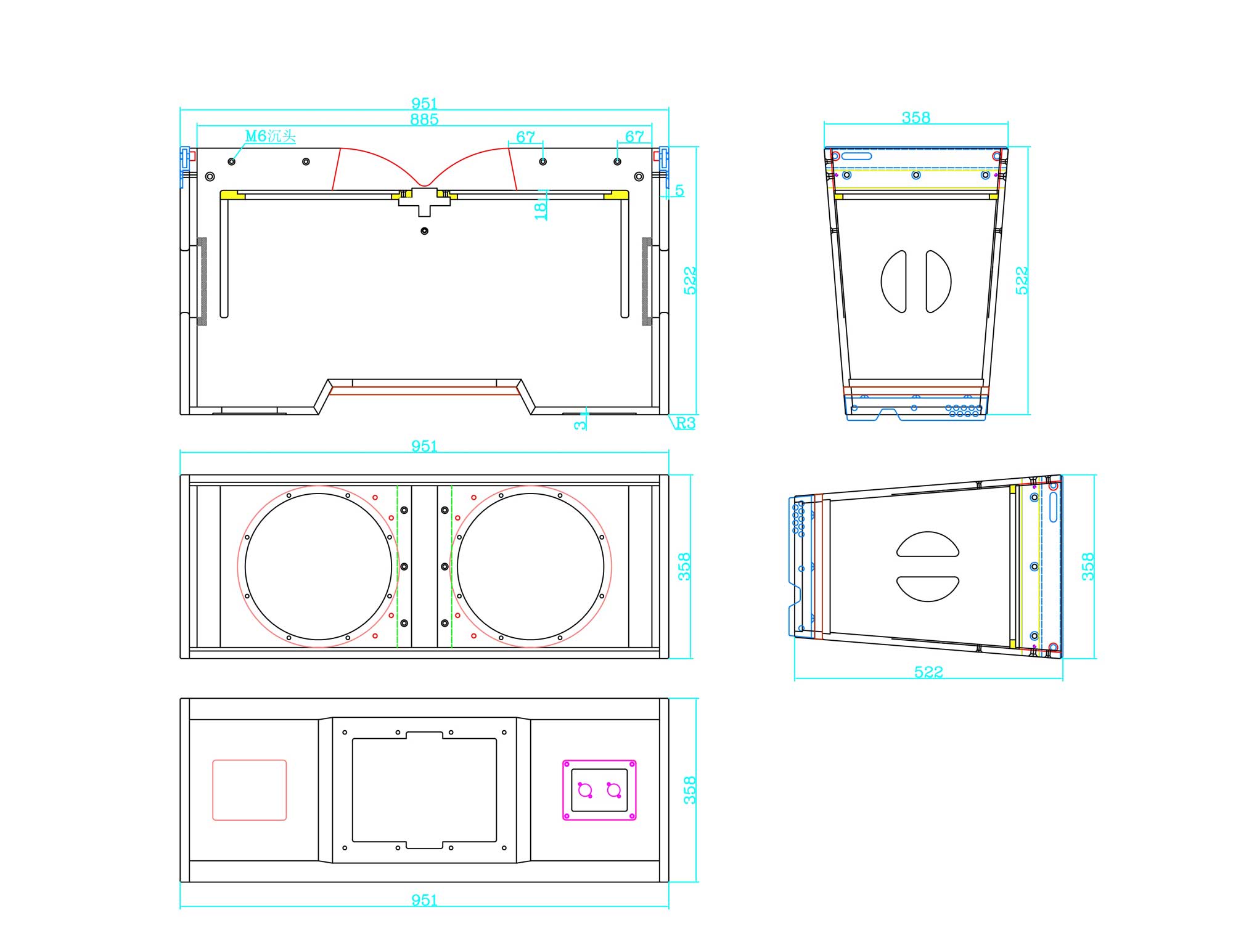

Dimensions (W x H x D): 951 x 358 x 522(mm)
Net weight 43Kg


×
