L15M
Single 15 inch two frequency division matrix speaker

The L15M line array speaker is a small two-channel frequency division system. It provides 40Hz-20KHz(-10db) frequency range with smooth frequency and phase response One 3" neodymium magnetic high-magnetic low-frequency unit cnstitute a combination with great dynamic margins, widch greatly reduces the body weight and provides extremely high sound pressure/volume ratio.

Applications: small per formances, restaurant bars, sports venues and bar main sound amplifications.


Model： L15M
Components： LF: 1x15"
HF: 1x3"
Frequency response： 40Hz-2kHz+500Hz-18kHz
Sensitivity(1w/1m)： 105DB(LF)+109DB(HF)
Rated Power： 600W+80W
Program Power: 1200W+160W
Peak Power: 2400W+320W
Nominal Impedance： 8Ω(LF) + 8Ω(HF)

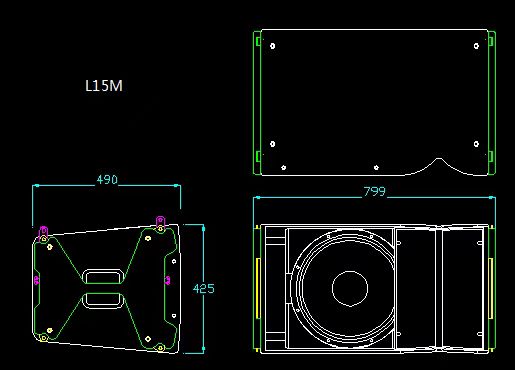

Dimensions(W×D×H): 799×490×425mm
Weight： 35kg


×
