L210M
Small two-frequency-division systemWith doude 10-inch WF

The L210M line array speaker is a compact two-way crossover system. It provides a frequency range of 75Hz-5KHz (low frequency) + 1.2KHz-20KHz (high frequency), featuring smooth frequency and phase response. A 3" neodymium high-frequency compression driver and two 10-inch neodymium low-frequency drivers form a highly dynamic combination, significantly reducing the weight of the cabinet and providing an extremely high sound pressure/volume ratio.

Application scope: sound reinforcement for small performances, dining bars, sports venues, and bars.


Model： L210M
Type: External two-way dual ten-inch professional line array speaker
Components： LF：2×10"，HF：1×3"
Frequency response： 75Hz-5KHz（LF）+1.2kHz-20KHz(HF）
Rated Power： LF:900W   HF:110W
Program Power: LF:1800W  HF:220W
Peak Power: LF:3600W  HF:440W
Sensitivity(1w/1m)： 102dB(LF)+110db(HF)
Maximum Sound Pressure： 135dB
Nominal Impedance： 8Ω(LF) + 8Ω(HF)
Dispersion angle： 110°×10°

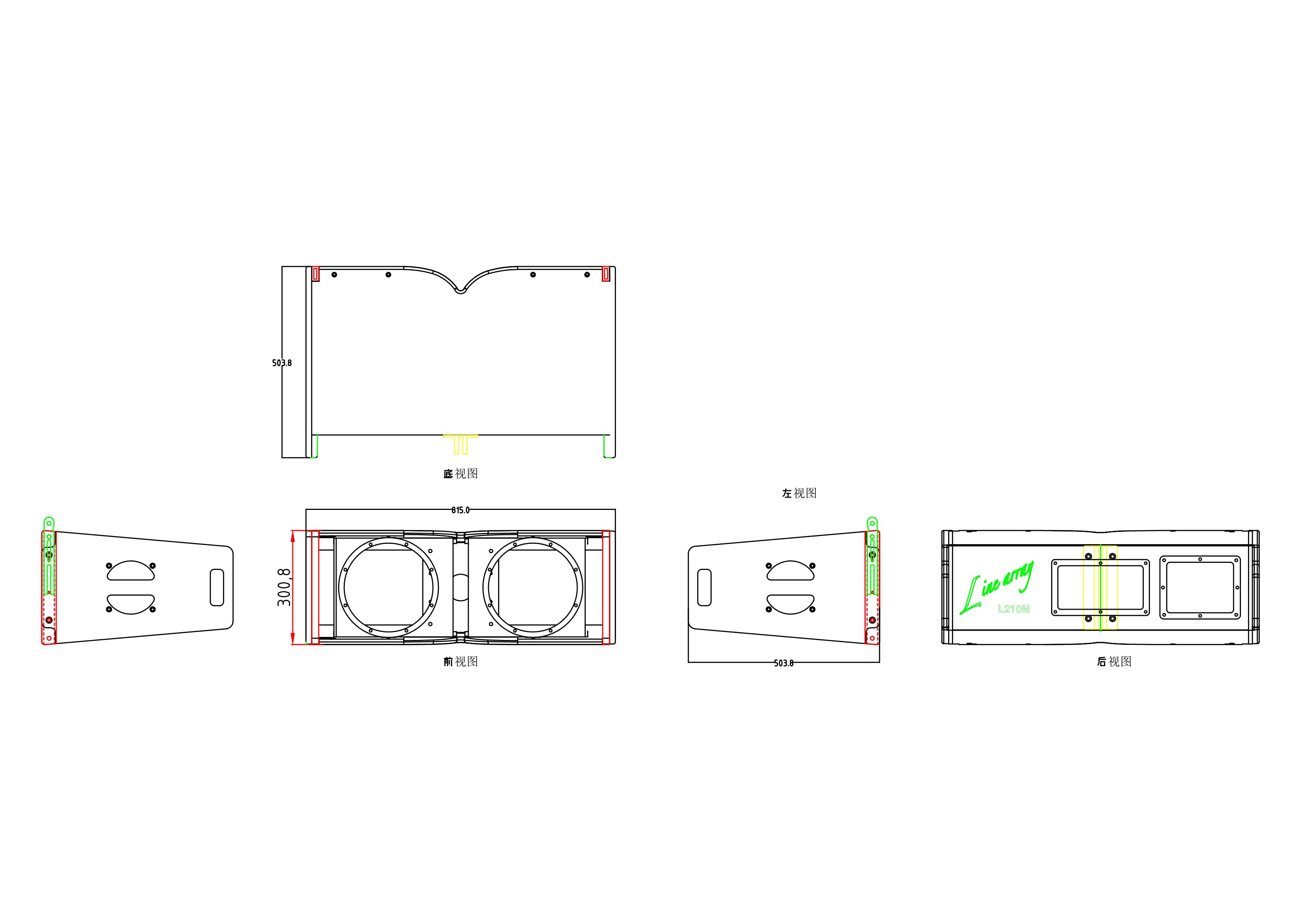

Dimensions(W×D×H): 764×574×314mm
Weight： 28kg


×
