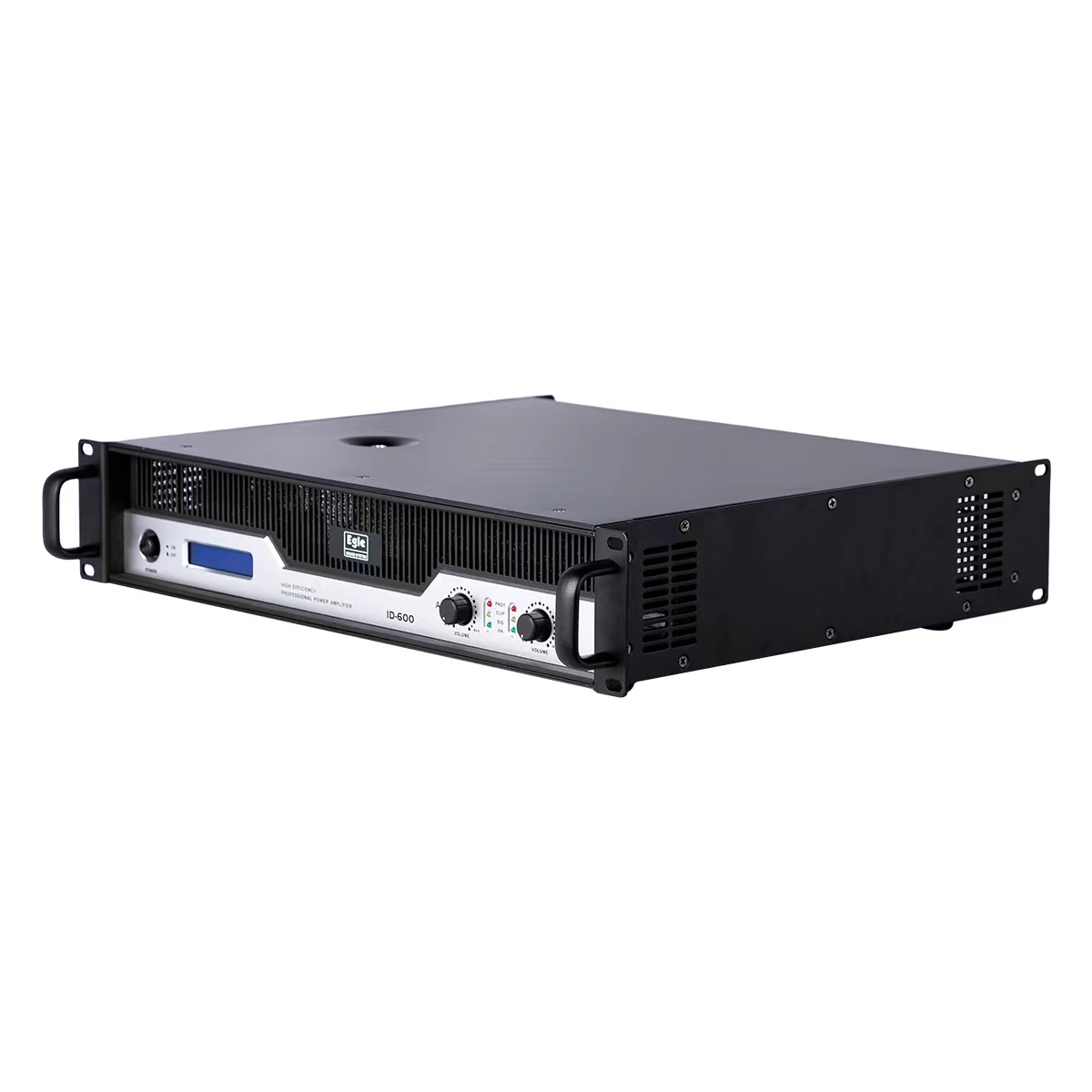

ID-600
2U 2 channel power amplifier

ID series amplifier is the speaker amplifier developed by EGLE exclusive high standard fixed installation project. It is optimized on the amplifier circuit of mature products before, and has higher cost performance on the basis of ensuring high standard speaker performance. ID series power amplifier adopts high standard flow-line production operation from components to assembly of the whole machine, which improves the production efficiency and reduces the probability of human error, and ensures product consistency. In addition, all the ID series power amplifiers have undergone long full power aging detection and full pass rate vibration testing to ensure the stability of the ID series power amplifiers working for a long time.
Therefore, ID series power amplifier is the preferred product for fixed installation of government projects such as various entertainment places, private rooms and advanced multi-functional conferences.



8Ω Stereo power: 2x600W
4Ω Stereo power: 2x900W
2Ω Stereo power: 2x1100W
8Ω Bridged power: 1600W
4Ω Bridged power: 2000W
Output circuit: Mix class H
Frequency response: 20Hz-20kHz±0.1dB
Input impedance: 10KΩ unbalanced;20kΩ balanced
Protect circuit: Surge current protection device,switch machine impact protection,power transformer and the heatsink temperatue
monitoring,DC amplifier output protection,overheating protection based on SOA,intelligent main fuse protection
Fan: Two independent speed control axial streaming cooling fans
LED indicator light: Per-channel signal & clipping,Per-channel comparator on/off,Per-channel transducer singer
Output connector: One 4-pin SPEAKON sockets
Signal to noise: >105dB
THD+N(typical): <0.01%
Damping factor: >450
N.W.: 14.34kg
Size: 483x378x89mm

×
