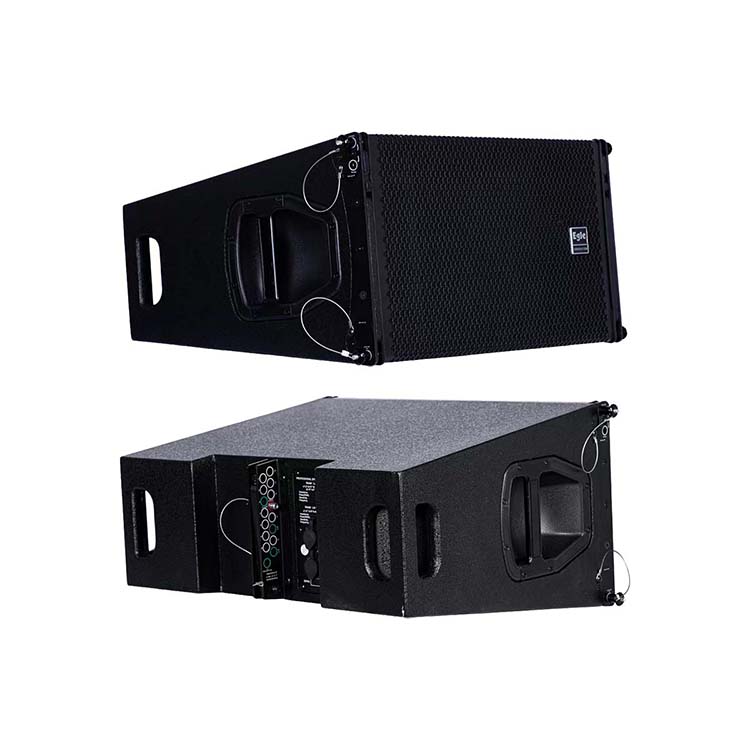

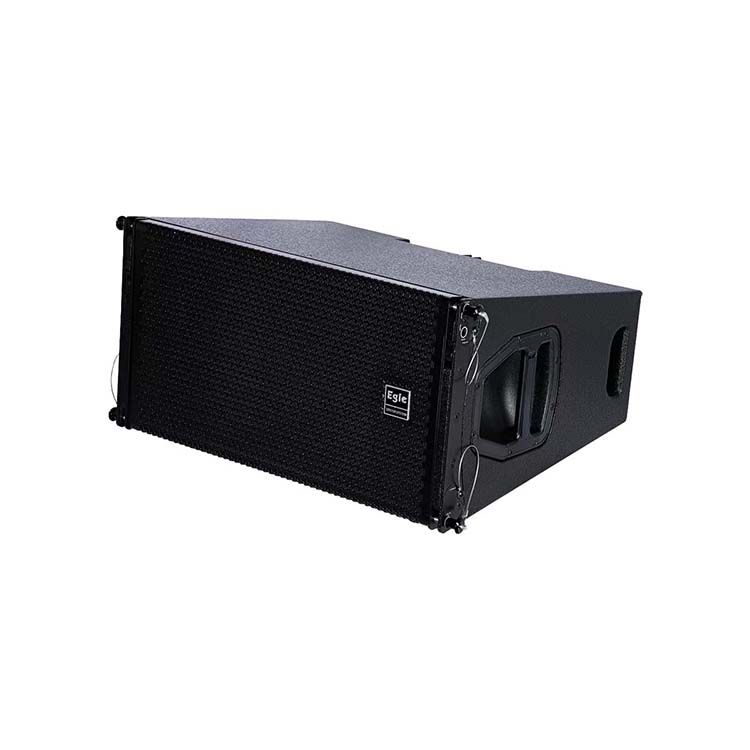

The LA-208 line array speaker is a small two channel crossover system. Provide a frequency range of 70Hz-20KHz with smooth frequency and phase response. A 75mm neodymium magnetic compression unit and two 8-inch bass units form a dynamic combination with great margin, greatly reducing the weight of the box and providing extremely high sound pressure/volume ratio.

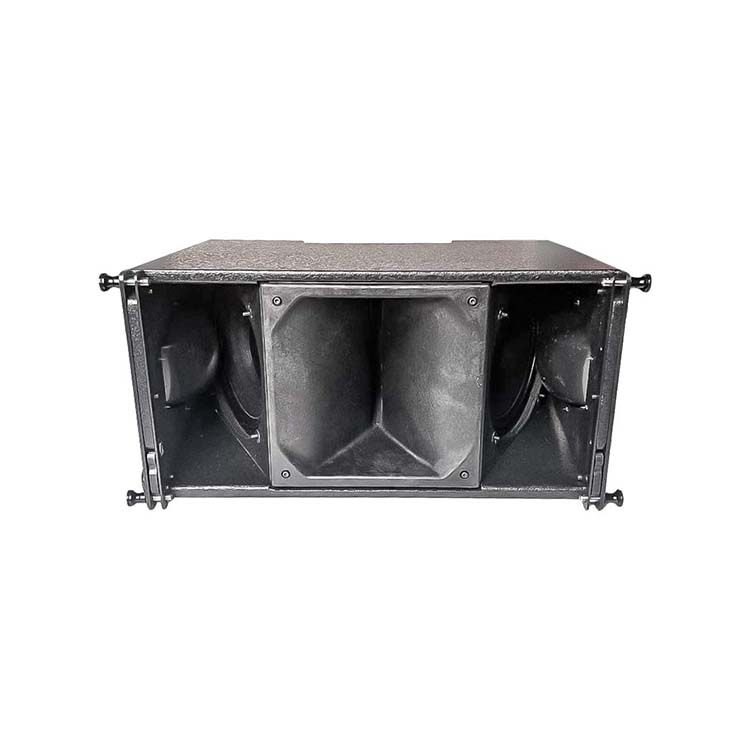

The mid to low frequency part of LA-208 uses a pair of 250W 8-inch paper basin bass units, with two working in parallel. The V-shaped symmetrical layout places the sound image at the center of the speaker, and a specially designed acoustic mesh is installed in front of the bass unit to prevent interference caused by comb filtering in the mid frequency range, optimizing the mid frequency directionality. The high-frequency part uses a 75mm neodymium magnetic compression unit combined with a planar wave transducer to generate a consistent wavefront. A 75mm compression unit with a sensitivity higher than 110dB produces a peak sound pressure output of up to 121dB in the extremely small box of LA-208.

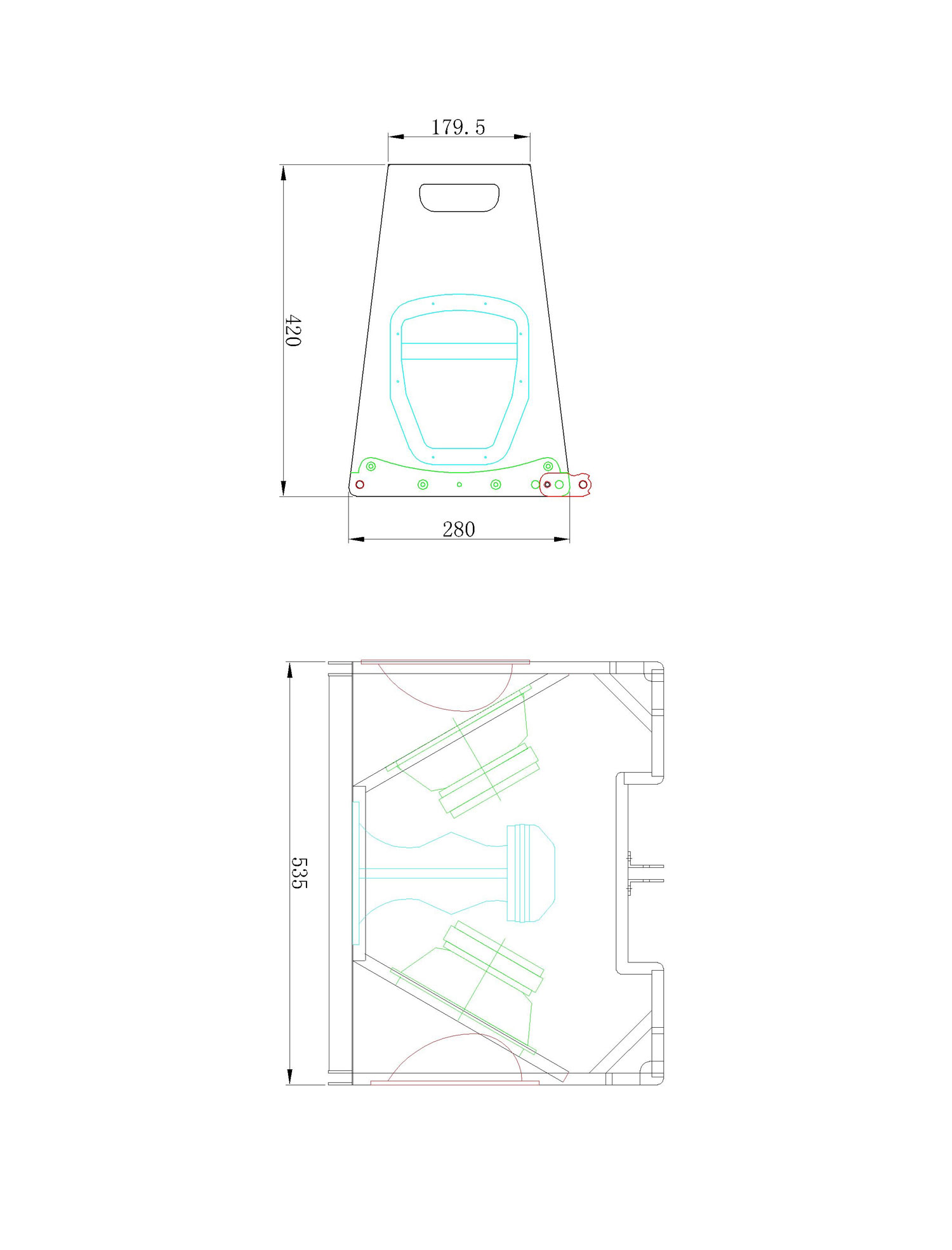

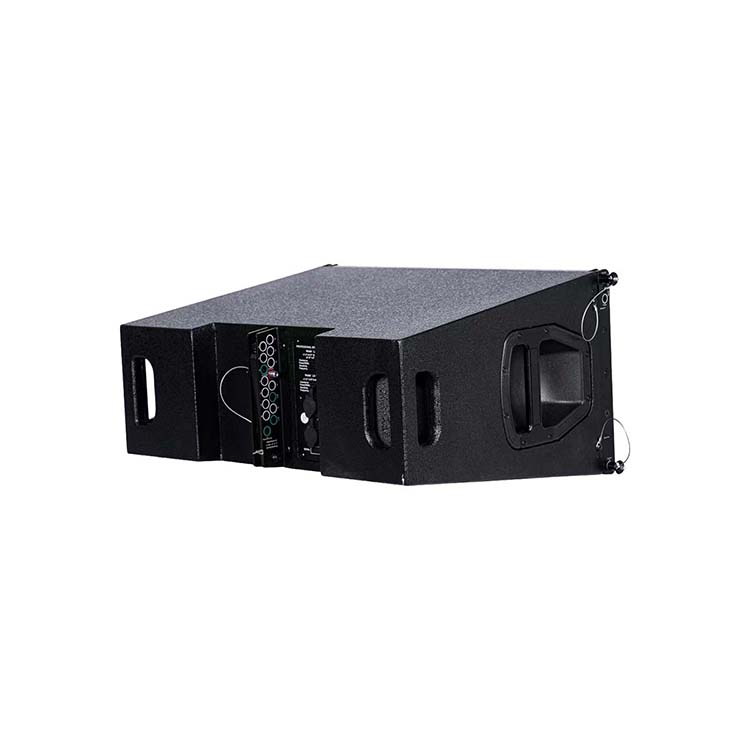

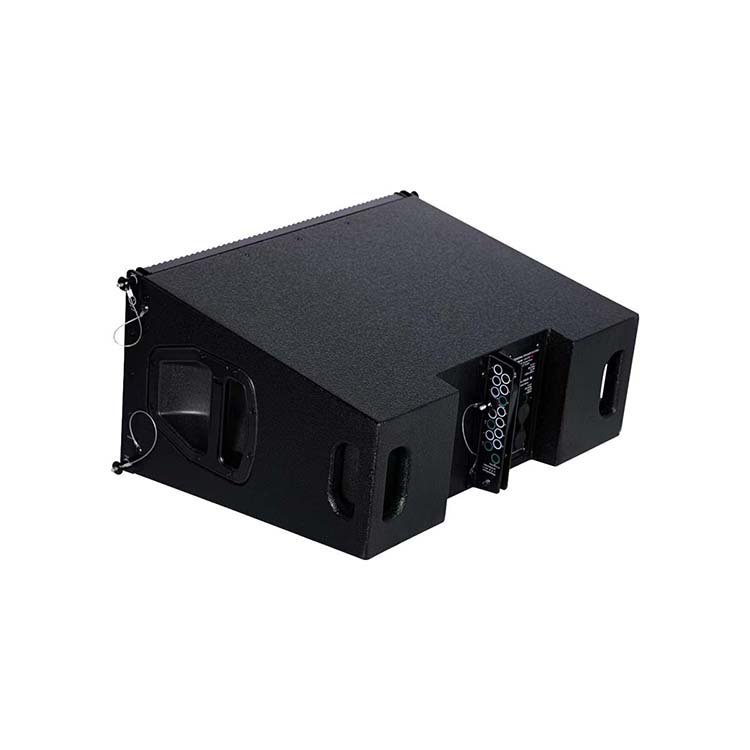

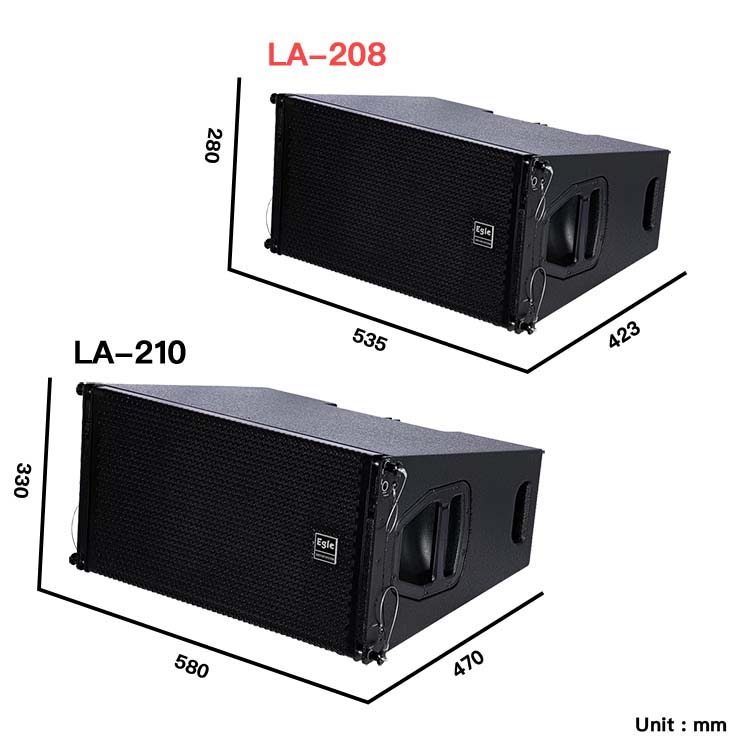

The box of LA-208 is trapezoidal, and the gap between the boxes has been minimized, thereby reducing the ineffective sound area of the entire array and minimizing the vertical side lobes of the array. The adjustable angle of each box is 0-5 degrees, with each degree adjustable. In addition, there are 8 angles of 7.5 and 10 degrees. The 3-point suspension system is hidden in the speaker and does not require common pins. When hanging 8 speakers, the suspension components have a safety factor of 7:1. The box is composed of a panel of 18mm and other 15mm plywood, with a wear-resistant black dot pattern waterproof paint on the surface. Two flush embedded handles are installed on both sides of the speaker for easy handling. Two NL4MP four core sockets on the rear wiring board, 1+1- connected to the bass unit and 2+2- connected to the tweeter unit. The black perforated iron mesh protects the speaker unit.
Application scope: Small outdoor performances, sports venues, and bar master amplifiers.
