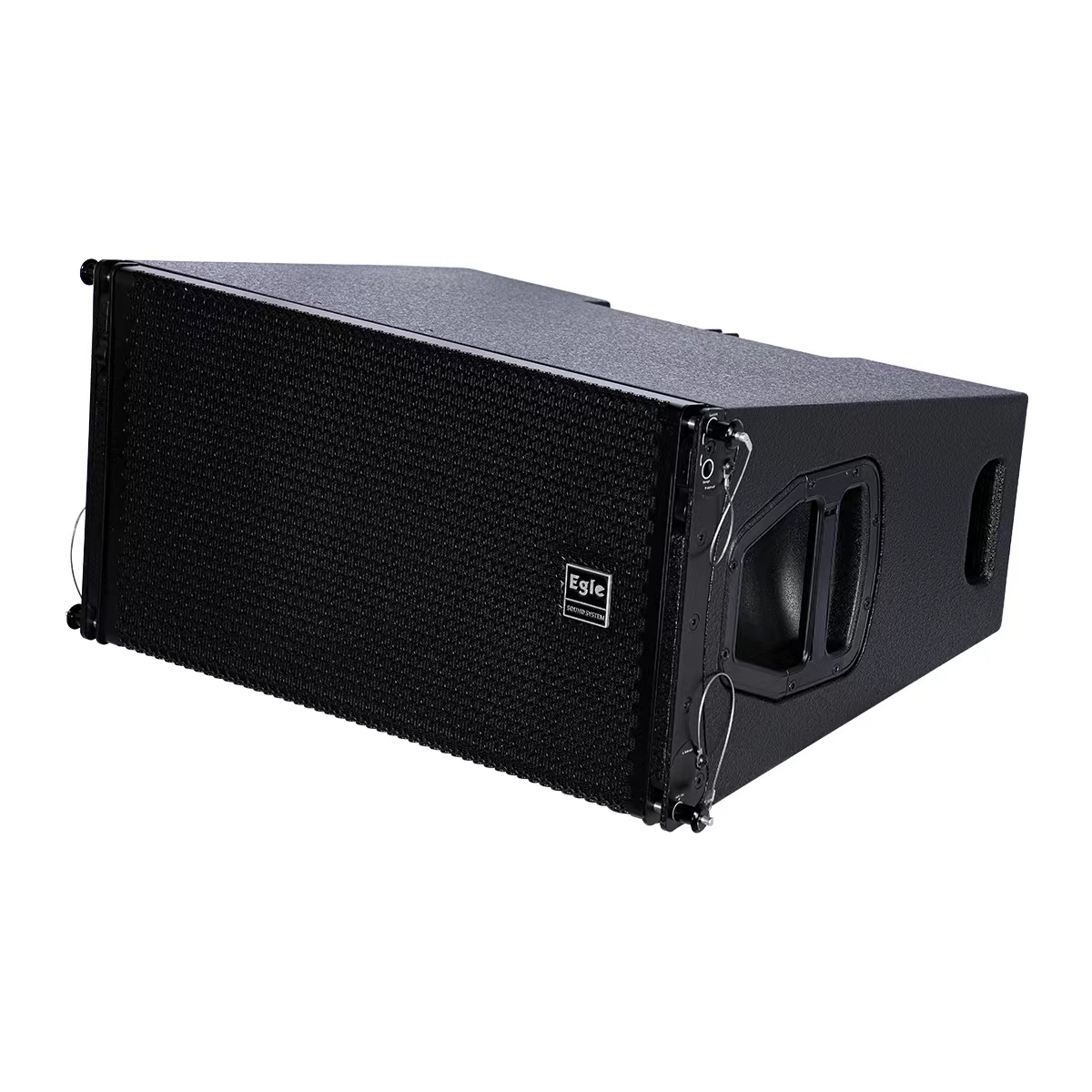

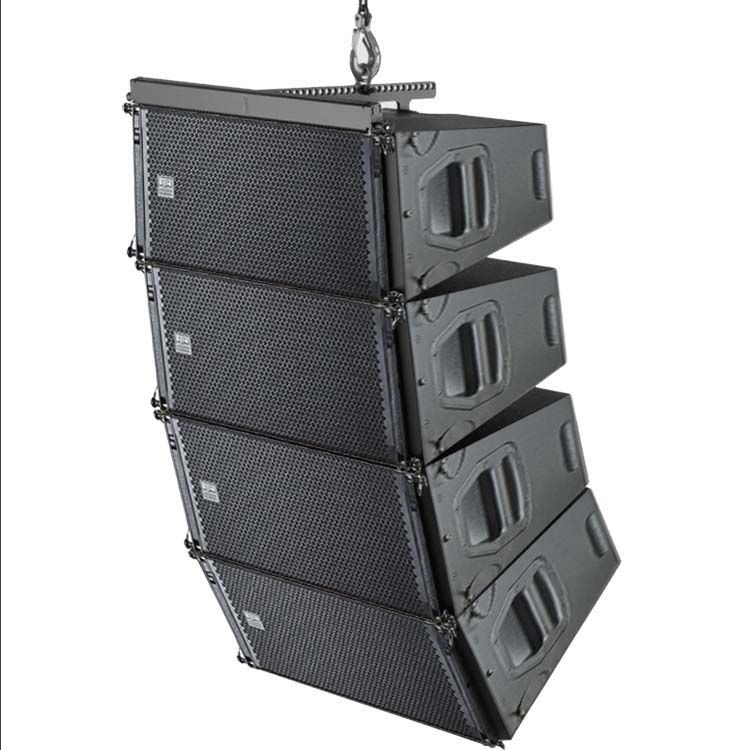

LA-210
Double 10 "two - division line array speakers

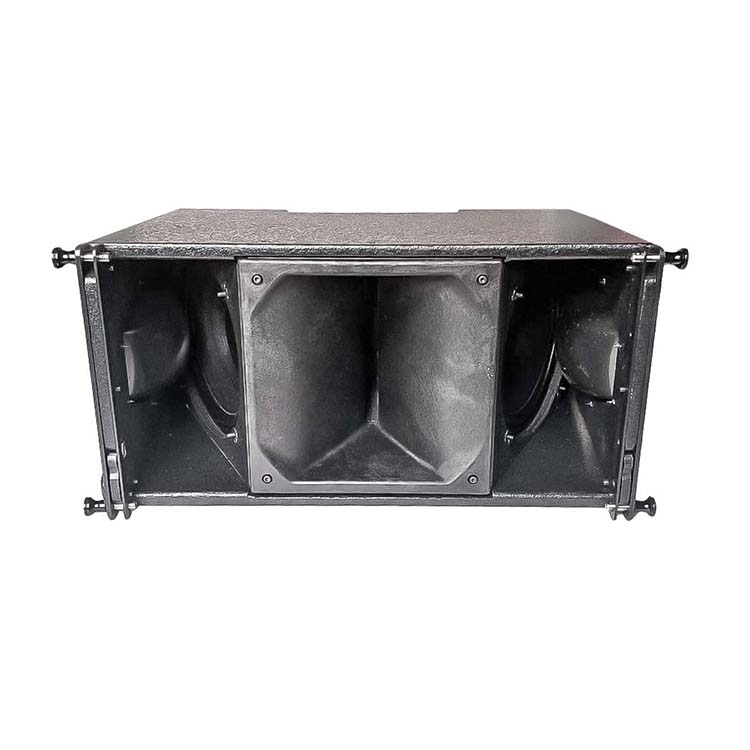

LA-210 is carefully designed for theaters, sports venues, outdoor performances, and other venues. Inside a high-density plywood box, it consists of two 10 inch high configuration low-frequency drivers and a coverage angle of 75 ° horizontal × Composed of a 75mm neodymium magnetic high-frequency driver on a 15 ° vertical high-frequency horn. Forming a combination with great dynamic margin and greatly reducing the weight of the box, providing extremely high sound pressure/volume ratio.
Application scope: Small and medium-sized outdoor performances, sports venues, and bar owners for sound reinforcement.


Model LA-210
Components LF 2*10" (75mm vc/170mm)
HF 1*3“(75mm Nd Magnet)
Connectors 2*NEUTRLK NL4
Frequency Response 80Hz-18KHz
Dispersion angle 120*15°
Sensitivity ( 1W/1M ) 116 dB
Maximum Sound Pressure 136 dB
Rated Power HF 100W  LF 600W
Program Power: HF 200W  LF 1200W
Peak Power: HF:400W  LF:2400W
Nominal Impedance 16Ω

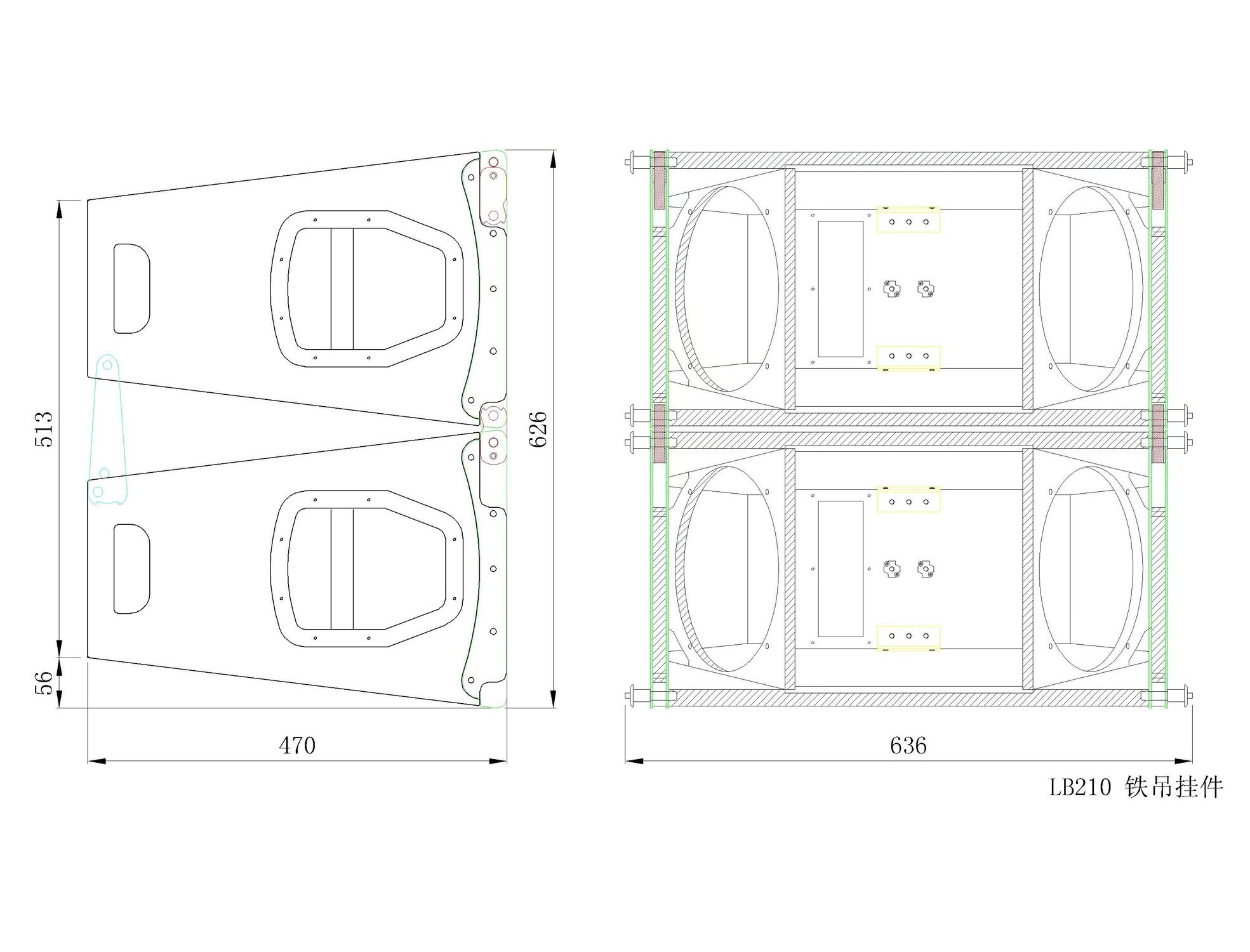

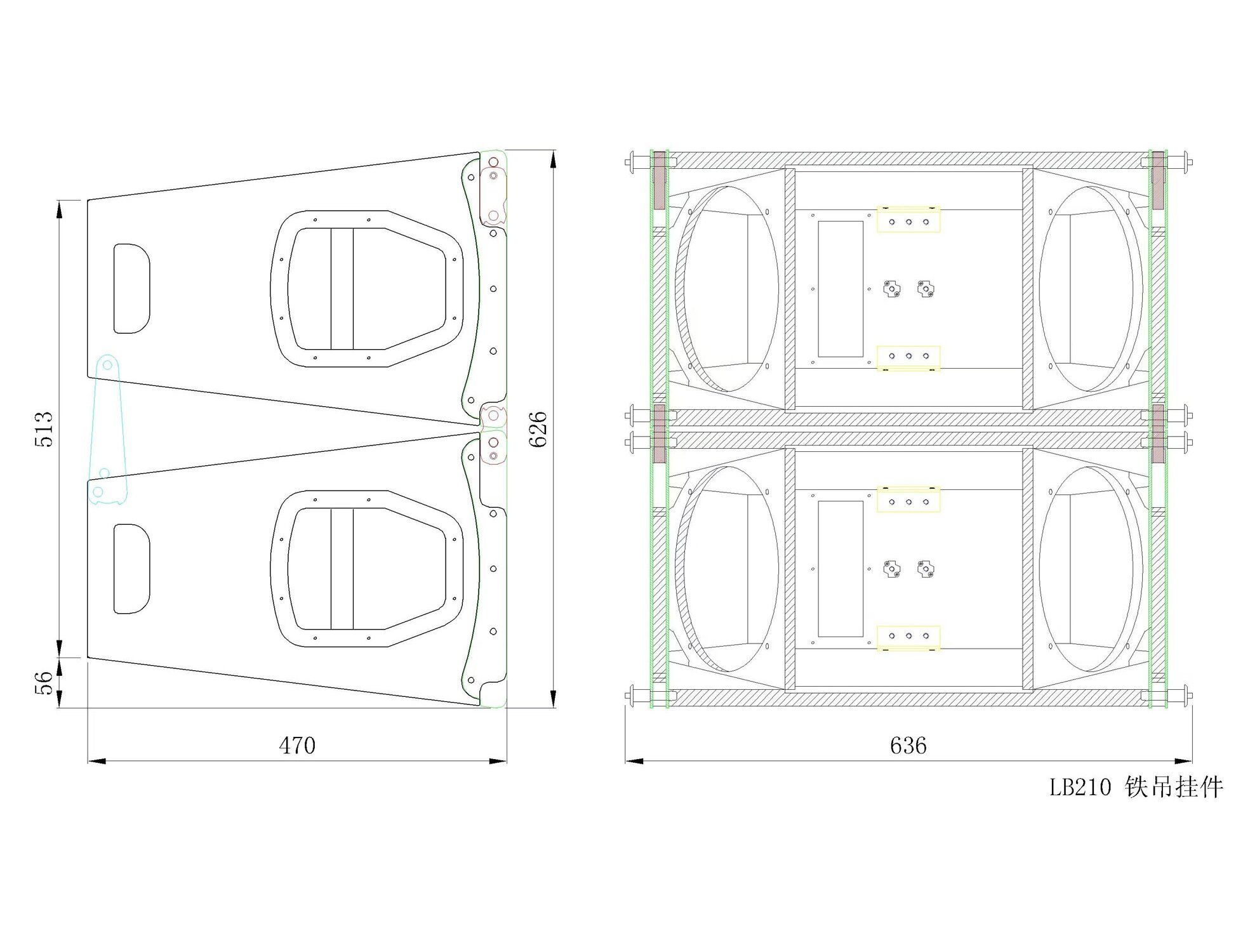

Dimensions(W×D×H): 636×470×313mm
Weight 39.5KG


×
