LA-206
Double 6 "two - division line array speakers

The LA-206 line array speaker is a small two channel crossover system. Provide a frequency range of 100Hz-18KHz (-10dB) with smooth frequency and phase response. A 1.75 inch neodymium high-frequency compression unit and two 6-inch low-frequency units form a combination with great dynamic margin, greatly reducing the weight of the box and providing extremely high sound pressure/volume ratio.

Application scope: Small performances, cafes, sports venues, and bar owners for sound reinforcement.


Model LA-206
Components LF 2*6" (50mm vc/134mm)
HF 1*1.75“(44mm Nd Magnet)
Connectors 2*NEUTRLK NL4
Frequency Response 100Hz-18KHz
Dispersion angle 120*15°
Sensitivity ( 1W/1M ) 96 dB
Maximum 116 dB
Maximum Sound Pressure 119 dB
Rated Power LF:200W,HF:60W
Program Power: LF:400W,HF:120W
Peak Power: LF:800W,HF:240W
Nominal Impedance 16Ω
Box appearance Black grain paint

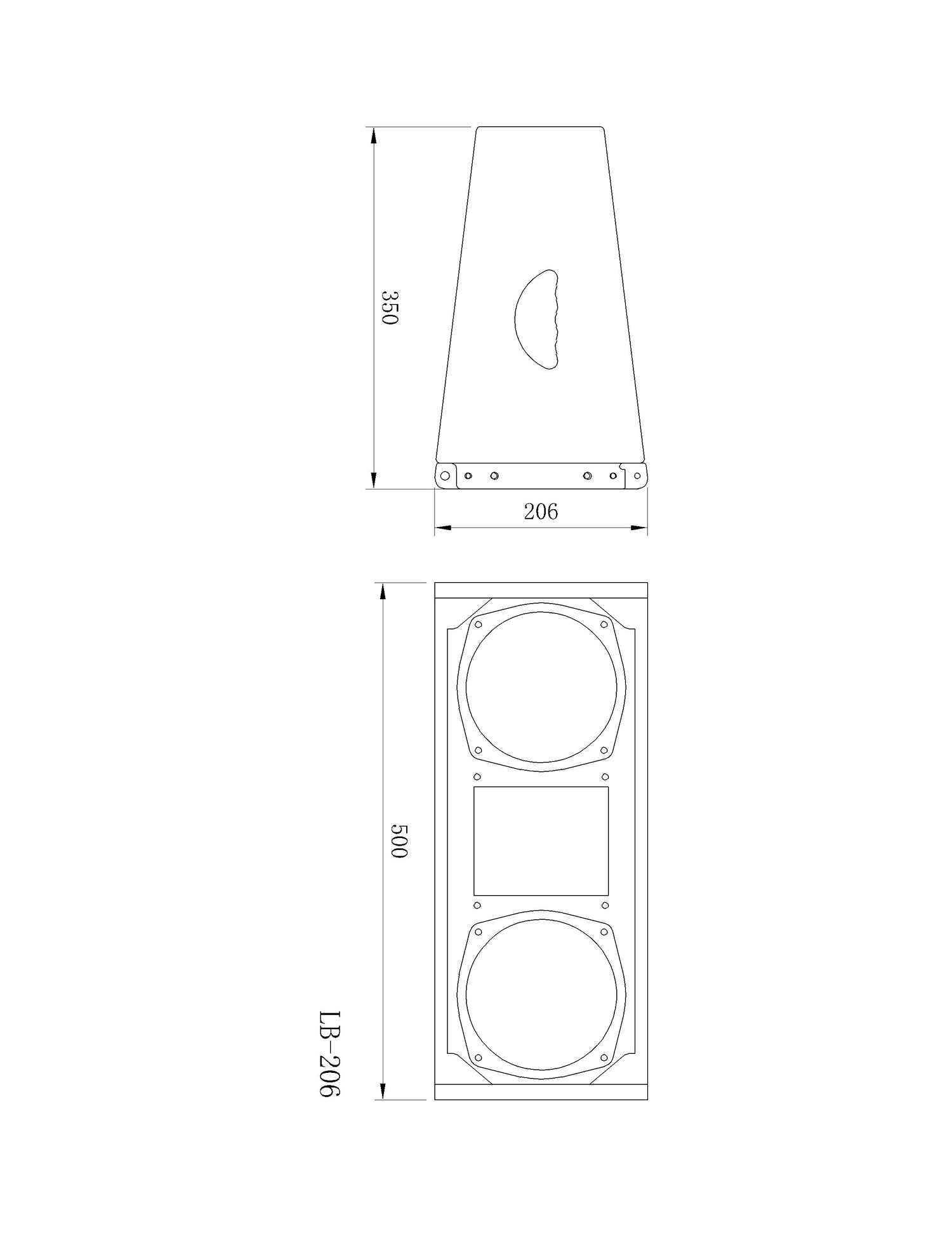

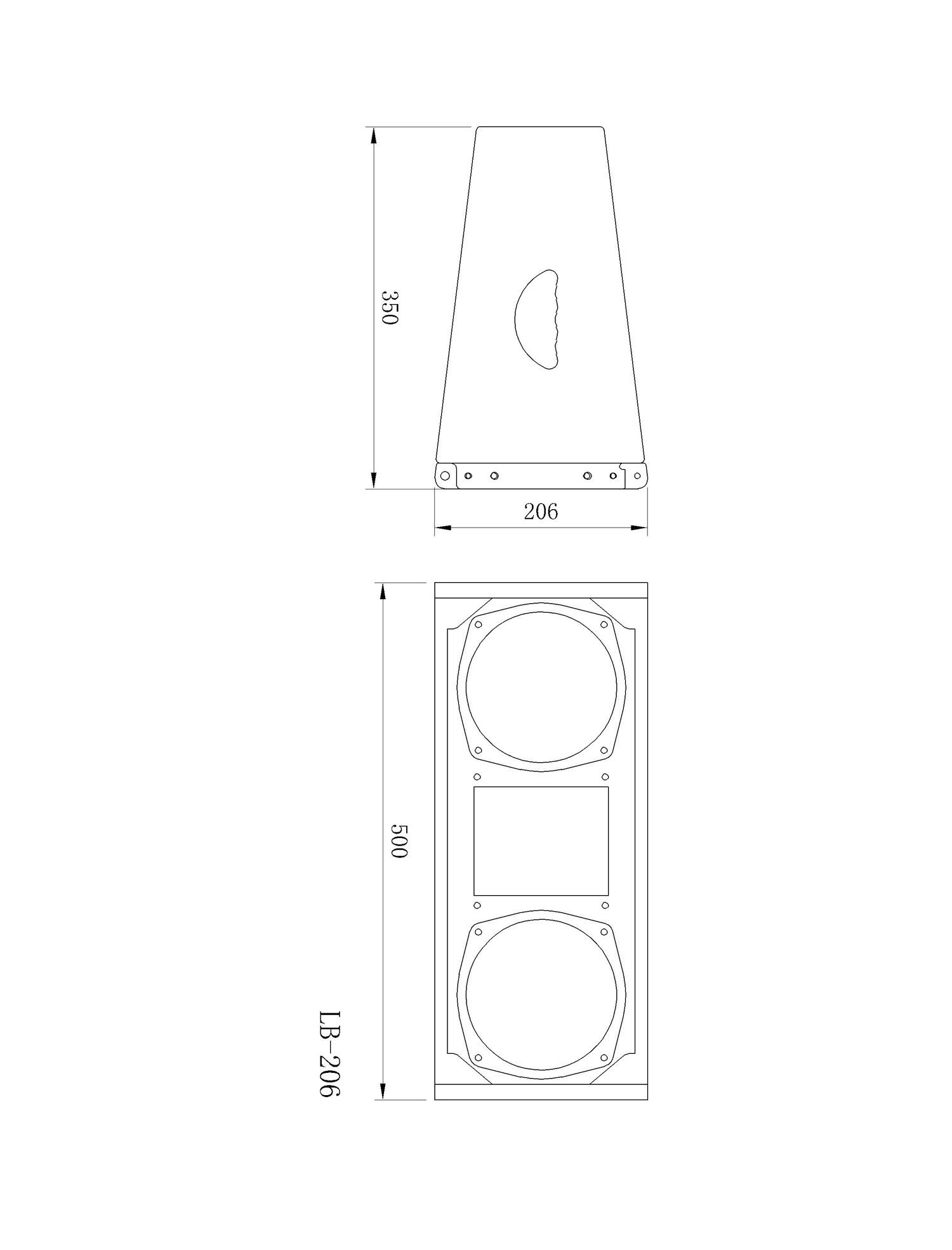

Dimensions(W×D×H): 500×350×206mm
Weight 15.3KG


×
