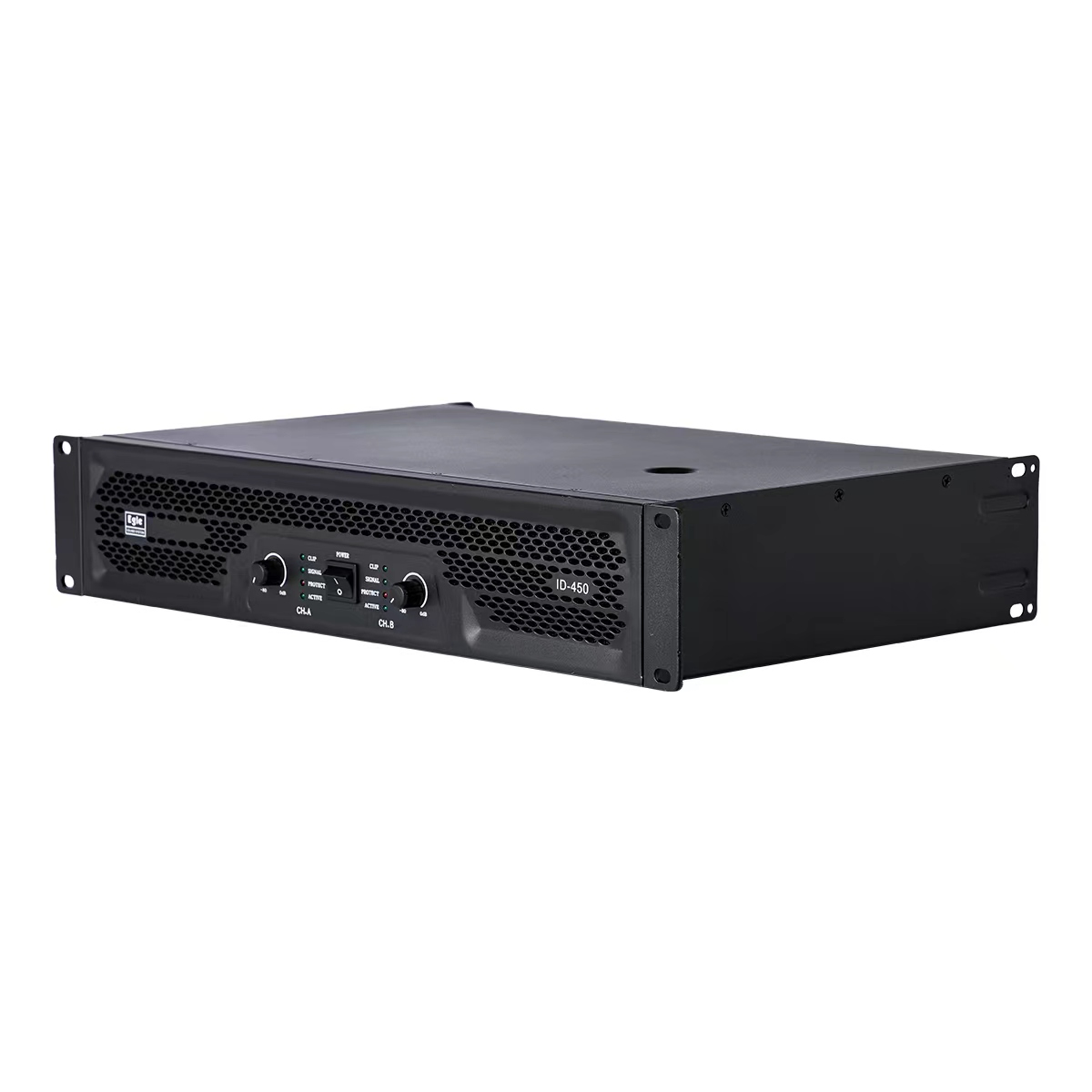

ID-450
2U 2 channel power amplifier

ID series amplifier is the speaker amplifier developed by EGLE exclusive high standard fixed installation project. It is optimized on the amplifier circuit of mature products before, and has higher cost performance on the basis of ensuring high standard speaker performance. ID series power amplifier adopts high standard flow-line production operation from components to assembly of the whole machine, which improves the production efficiency and reduces the probability of human error, and ensures product consistency. In addition, all the ID series power amplifiers have undergone long full power aging detection and full pass rate vibration testing to ensure the stability of the ID series power amplifiers working for a long time.
Therefore, ID series power amplifier is the preferred product for fixed installation of government projects such as various entertainment places, private rooms and advanced multi-functional conferences.



power: 450Wx2/8Ω,600Wx2/4Ω,1200W/8ΩBRI
SNR: +/-100DB 20Hz—20KHz
Conversion rate: 40V/US
Frequency response: +/-0.5DB 20Hz—20KHz
Total harmonic distortion: ≤0.05% RATED POWER@8Ω 1KHz
Intermodulation distortion: ≤0.01% RATED POWER@8Ω
Input sensitivity: 0.775V 1.0V 1.44V
Input impedance: 10K/20K ohurs
Crosstalk: ≤ -70dB
weight: 10KG
size: 483*305*90mm


×
